- Power:Battery
- Material:plastic
- Scale:1:16
- Place of Origin:CN;GUA
- Type:Robot
- Plastic Type:Other
- Brand Name:Feetech
- Model Number:FS90-C3
- Style:Radio Control Toy
- color:Blue
- servo type:9g Micro servo
- Operating Voltage ::0-3.3V
- Control System ::Analog
- Direction ::CCW
- Operating Angle ::180 Degree
- Required Pulse ::500us-2100us
- Gear Type ::Plastic
- Motor Type ::Metal
Hot Sale FS90 SG90 RC Micro 180 Degree Rotation 3V-5V 3.0V 3V Servo For micro:bit
Features:
This is a great general-purpose actuator for tiny mechanisms.
The FS90 is a 9 g analog servo from FEETECH (formerly known as Fitec)
that offers position control over an approximate 180° operating angle
for servo pulses between 500 µs and 2500 µs.
which makes it a great miniature actuator for beginner robotics projects,
ideal for use with micro-controller systems like the BBC microbit(Support 3.3V), Arduino, Raspberry Pi and PICAXE.
| No. | Item | Specification | |
| 1 | Size | A:23.2mm B:12.5mm C:22mm | |
| 2 | Weight | 9g | |
| 3 | Gear type | Plastic Gear | |
| 4 | Limit angle | 160degree | |
| 5 | Bearing | NO Ball bearings | |
| 6 | Horn gear spline | 21T | |
| 7 | Horn type | Plastic,POM | |
| 8 | Case | ABS | |
| 9 | Connector wire | 250mm ±5 mm | |
| 10 | Motor | Metal brush motor | |
| 11 | Splash water resistance | NO | |
Electrical Specification (Function of the Performance):
| No. | Operating Voltage Range | 3V | 4.8V |
| 1 | Idle current(at stopped) | 5mA | 6mA |
| 2 | No load speed | 0.12sec/60degree | 0.10sec/60degree |
| 3 | Runnig current(at no load) | 100 mA | 120 mA |
| 4 | Peak stall torque | 1.3kg.cm | 1.5kg.cm |
| 18.09oz.in | 20.86oz.in | ||
| 5 | Stall current | 700 mA | 800mA |

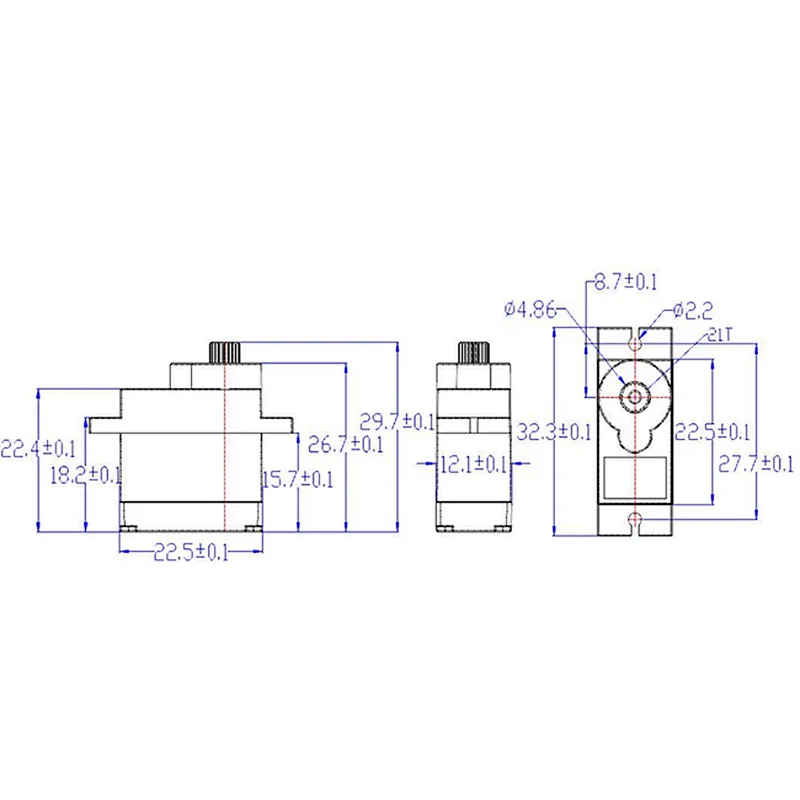

The Drawings:
Packing:
1-PE bag (A servo + accessory)
2-Box (A servo + accessory)
FS90 Continuous Rotation Servo application:
