- Color:Black
- Certificate:ROHS
- Feature:TT 130 DC Motor Gear Box With Motor Wire
- Application:Robot,Robot Car Chassis,Mobile Platform
- Motor Size:70x22x18mm
- Motor type:Core motor
- Packing:Plastic bag
- Gear Ratio:1:48
- Stall Torque (6V):0.8kg.cm
- Voltage:DC 3V-12V
- Type:Car
- Power:Battery
- Material:plastic
- Plastic Type:ABS
- Scale:1:14
- Radio Control Style:RC Hobby
- Place of Origin:CN;GUA
- Brand Name:Feetech
- Model Number:FT-DC-130D+W
DC Motor Gear Box With Motor Wire and Plastic Tire Wheel For DIY
Product Description
DC motor gear box(1:48) to drive. High speed up to 200RPM,
at 200mA/6V and 90rpm/150mA/3V
Motor Specifications:
| Motor: | Core Motor |
| Operating Voltage: | DC3~6.0 V |
| Operating Speed (3V): | 200+/-10% RPM |
| Operating Speed (6V): | 90+/-10% RPM |
| Stall Torque (6V): | 0.8kg.cm |

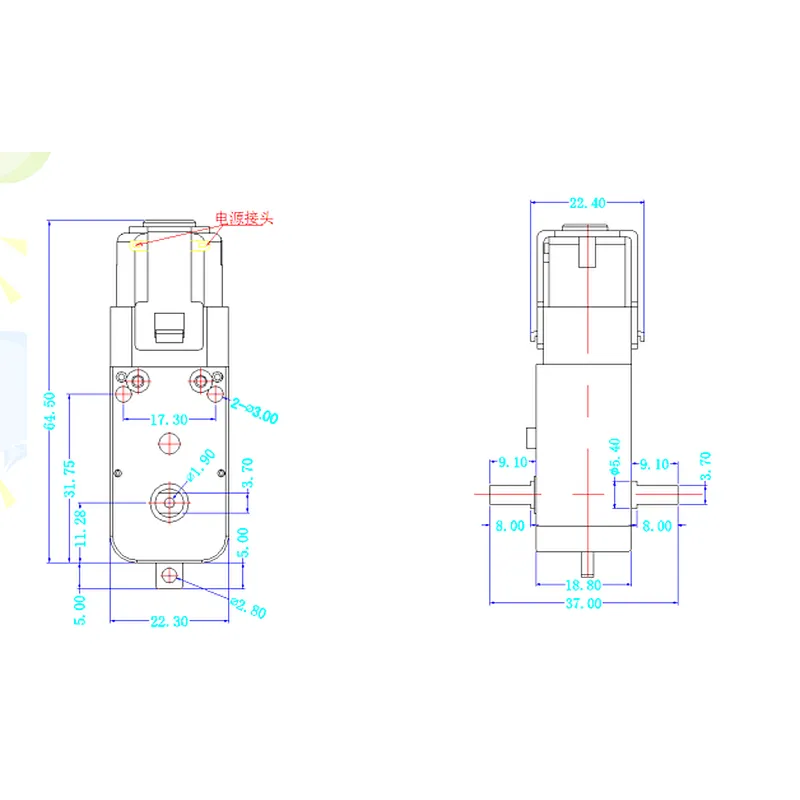

| Dimensions: | 70x22x18mm |
| Weight: | 30g |
| Gear Ratio: | 1:48 |

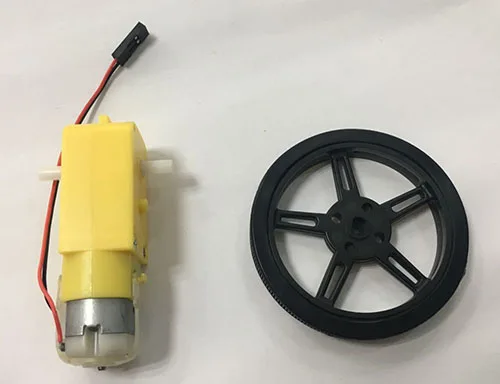

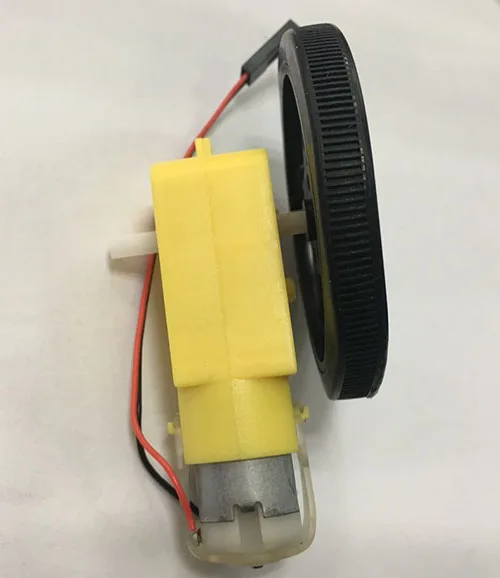

Picture:
Application:
In Mini Robot Car Mobile Plarform,
Related Products:
Our Services:
Specialized in ODM and OEM and Custom Made
we can provide electronic design,
structure design and production of0 one-stop customized serive,
Please feel free to share with me your idea.
Customizable content:
1.Your Logo lable or print
2.Servo Wire:length,wire core,wire colour
3.Packing:PE Bag,Colur Box,plastic box wity your Logo
4.Cable connector:1-4 pin JR,JST,XH
5.Output Gear:
The material:Plastic,Copper,steel
Output teeth:25T Spline,hexagonal,and so on
6.CNC case:Case structure,colour
7.Electronic function More......
2.Servo Wire:length,wire core,wire colour
3.Packing:PE Bag,Colur Box,plastic box wity your Logo
4.Cable connector:1-4 pin JR,JST,XH
5.Output Gear:
The material:Plastic,Copper,steel
Output teeth:25T Spline,hexagonal,and so on
6.CNC case:Case structure,colour
7.Electronic function More......
